Product details

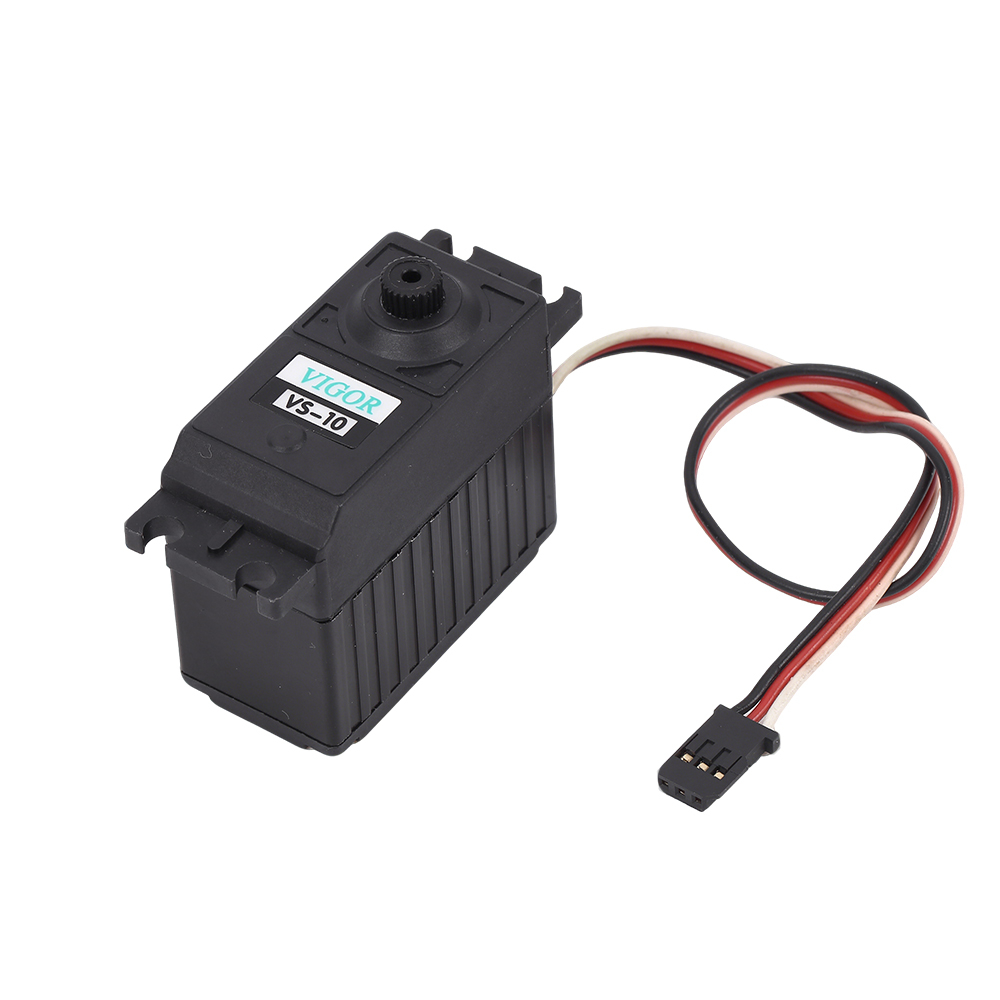

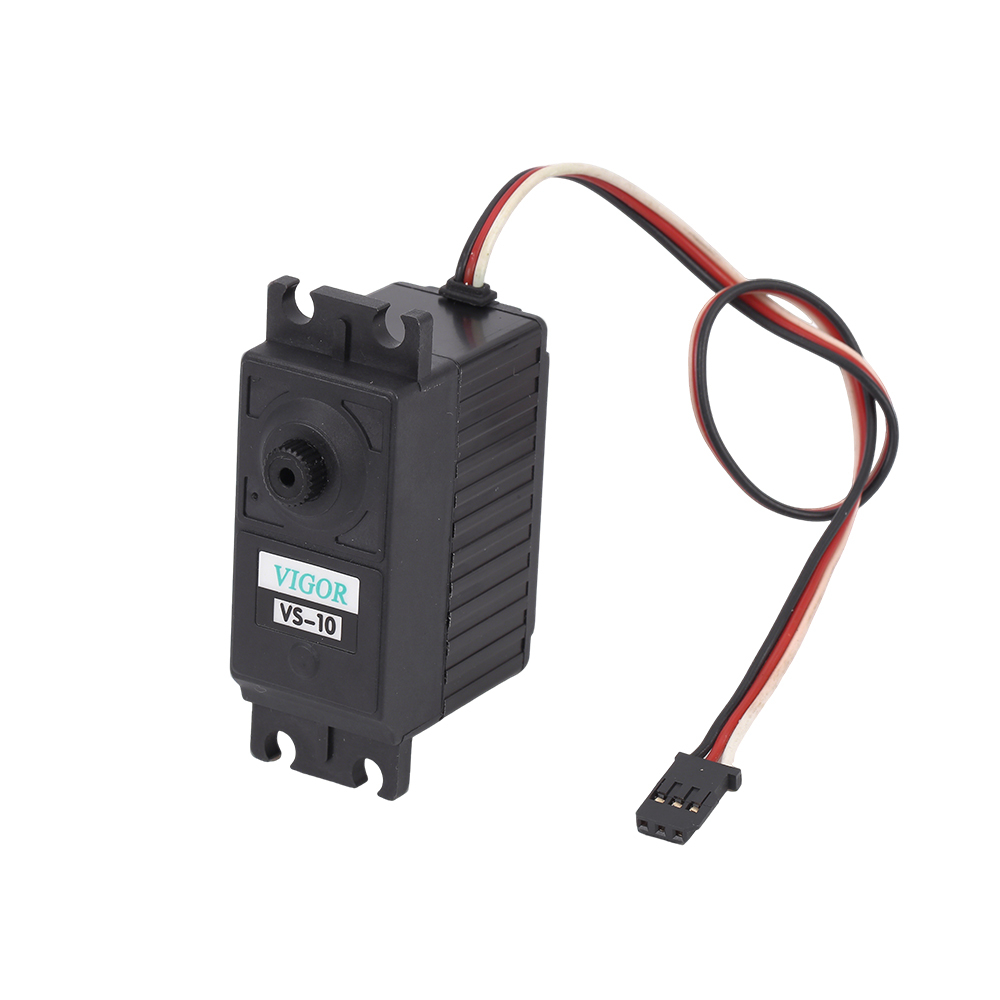

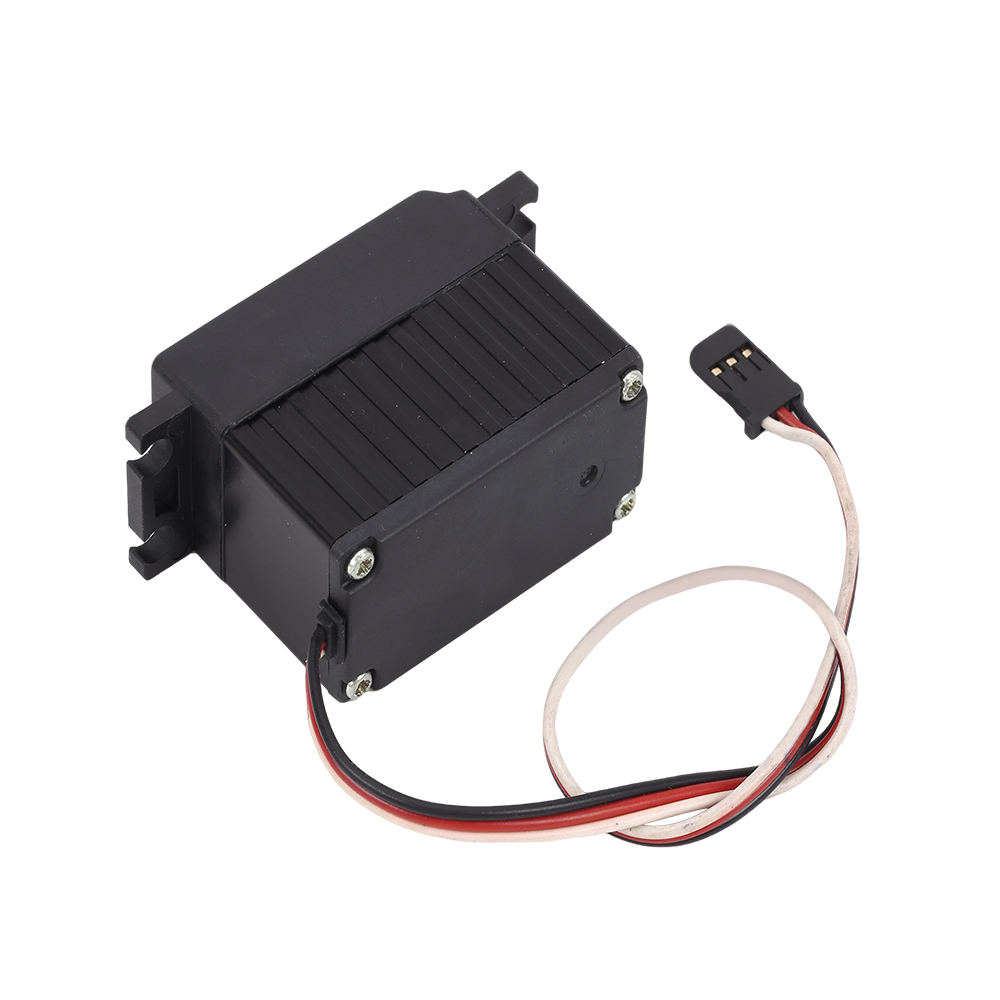

VS-10

- Control System
Pulse width control, 1500μs neutral
- Operating Voltage
4.8V~6.0V (DC)
- Test Voltage
at 4.8V at 6.0V
- Running Current
~0.25A ~0.3A
- Stall Current
~2.6A ~3.3A
- Output Angle
≥170°
- Dead Band Width
5 μsec

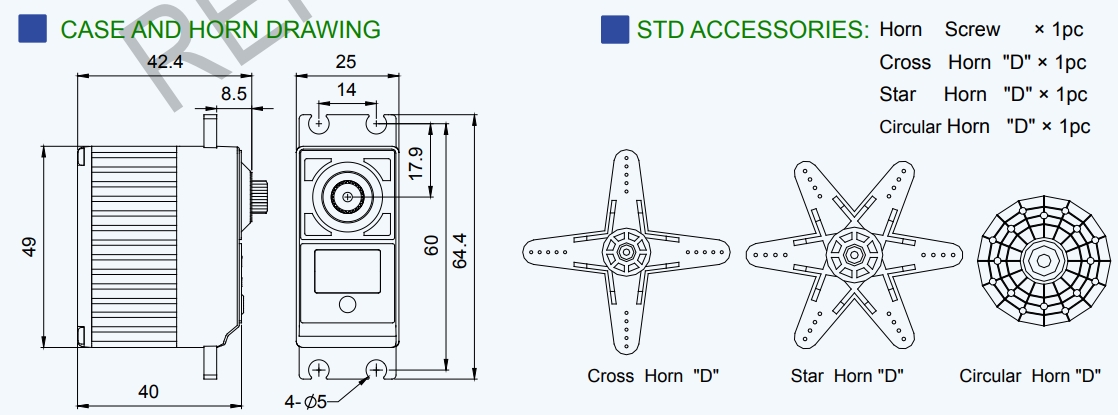

- Size
49.2×25×42.5mm(2.54×1.0×1.67in)
- Weight
80g (2.82 oz)
