Product details

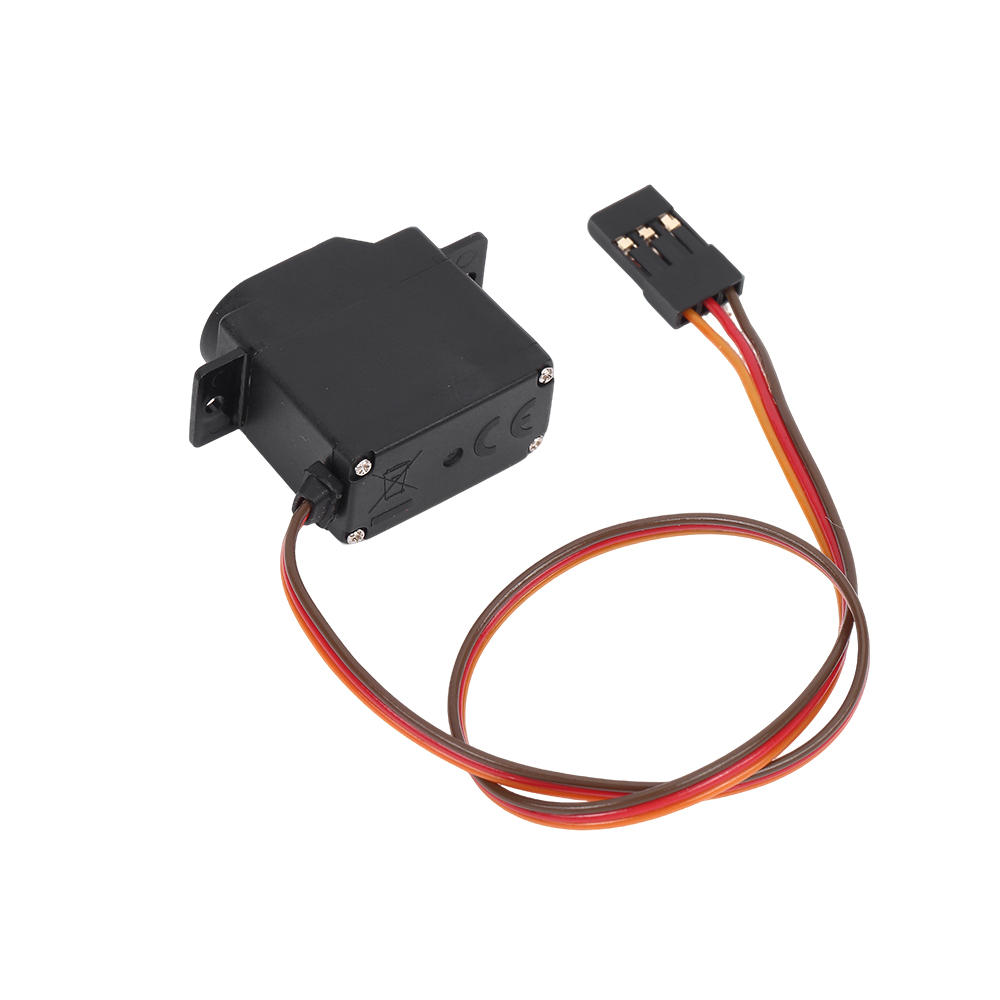

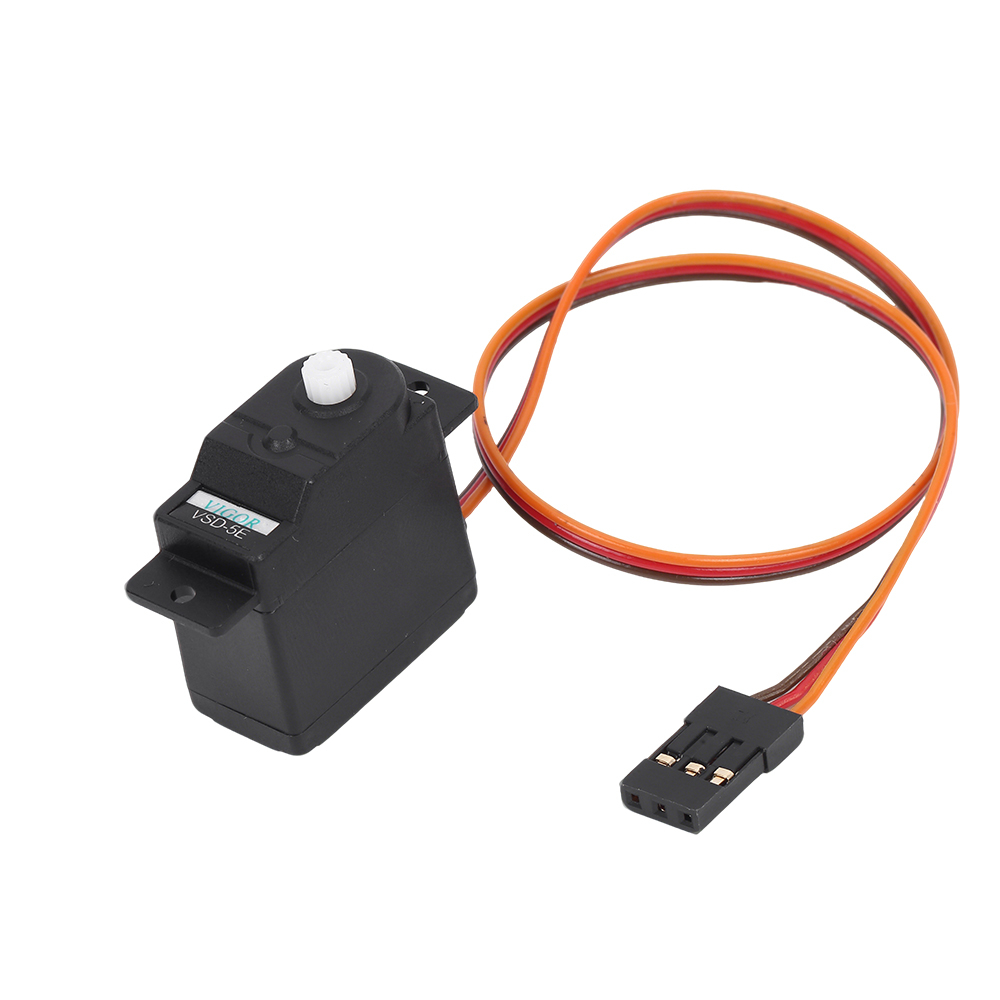

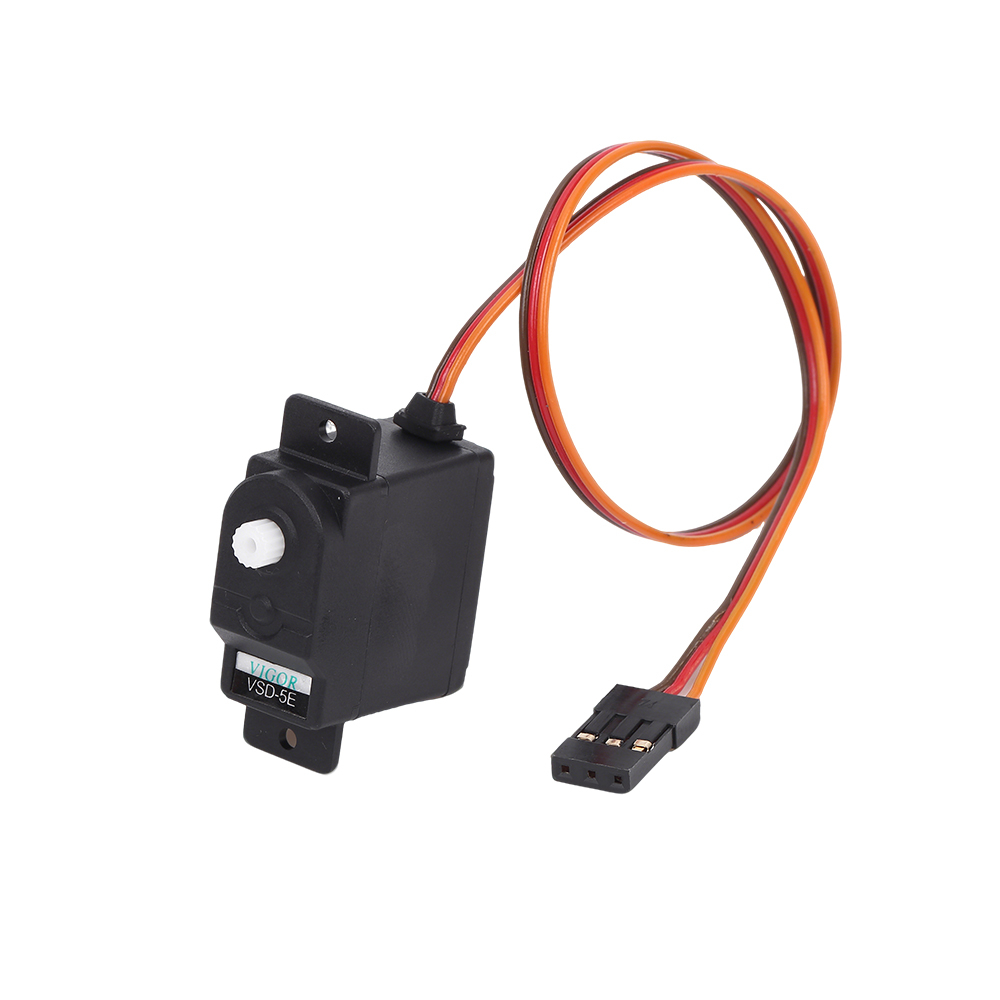

VSD-5E

- Control System
Pulse width control, 1500μs neutral
- Operating Voltage
4.8V~6.0V (DC)
- Test Voltage
at 4.8V at 6.0V
- Running Current
~0.15A/~0.2A
- Stall Current
~0.5A / ~0.6A
- Output Angle
≥120°
- Dead Band Width
4μsec (Digital PCBA ,8 bits)

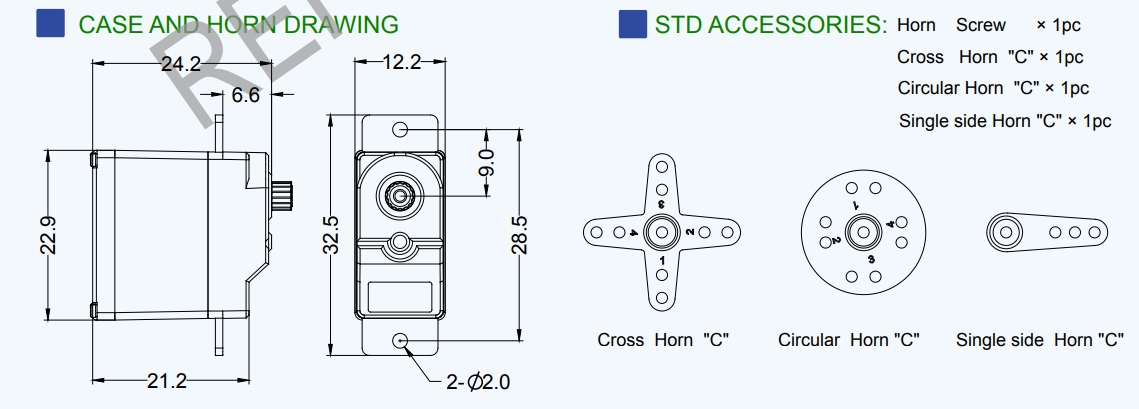

- Size
22.94×12.2×24.2mm(0.90×0.48×0.95in)
- Weight
8.0g(0.28oz)
